Product Name |
Zirconium Tube Zirconium Pipe |
|
Grade |
R60702 |
|
Standards |
ASTMB523&B658 ASME SB-523/658 |
|
Size |
See detail in descriptions ↓↓↓ |
|
Purity |
≥99.2% |
|
Color |
Silver gray |
|
Density |
6.51g/m³ |
Explore the durability and efficiency of our Zirconium Tubes and Pipes, specifically designed to meet the rigorous demands of the chemical processing industry and other high-stress environments.
Our Zirconium Tubes and Pipes offer unparalleled corrosion resistance, making them perfect for use in highly corrosive environments where standard materials fail.
We provide a range of sizing and thickness options to ensure our products perfectly match your specific requirements, with customization options available to meet unique needs.
Benefit from the latest advancements in metallurgical technology, our Zirconium Tubes and Pipes are manufactured using state-of-the-art processes that enhance strength and durability.
From chemical processing to various equipments, our tubes and pipes are designed to perform under the toughest conditions, ensuring reliability and safety.
Ⅰ. What is Zirconium?
Zirconium, a rare metal known for its excellent corrosion resistance and high-temperature strength. It’s suitable for applications and environments where the properties of stainless steel and Titanium are not sufficient.
As a Zirconium material expert for more than 20 years, we are willing to share our experience with others. If you have any question or technological problem, feel free to Contact Us. We are here to provide any kind of help.
Ⅱ. Product Specification
R60702
| Seamless | Outer diameter | Wall thickness | Length |
| 0.315” to 5.99” (8mm to 152 mm) |
0.02” to 0.59” (0.5mm to 15mm) |
up to 354” (up to 9000mm) |
|
| Welded | min 0.39” (min 10mm) |
/ | / |
| ASTM | B523/B523M-18(2023) | ASME | SB-523 |
| ASTM | B658/B658M-11(2020) | ASME | SB-658/SB-658M |
| R60702 | |||
| Tensile strength,min,ksi[Mpa] | 55[380] | ||
| Yield strength,min,ksi[Mpa] | 30[205] | ||
| Elongation in 2 in. or 50mm,min,% | 16 | ||
Ⅲ. Quality & Assurance
We are ISO9001, ISO14001, and OHSAS18001 certified company.
We are located in Guli Industrial Area, Guli Street, Jiangning District, Nanjing, China. Welcome to visit us any time!
①Full-time laboratory staff: 7 people.
②Researchers: 3 masters and 4 bachelors.
③Technical staff: 4 bachelors.
We have 84 domestically authorized patents, including 20 invention patents, 61 utility model patents, 3 design patents, 3 Paris Convention (Britain, France, Germany), and 1 PCT (United States).
We implement strict quality control in the manufacturing process, at every step from raw material (sponge, crystal bars, or ingots) to final products.
Tests are done according to customers' quality requirements:
| Tension test | Ultrasonic test | Eddy current test | Hydrostatic test | Pneumatic test |
| Flare test | Reverse flattening test | Chemistry test | etc. |
Ⅳ.Application
Zirconium material and products are widely used in industries such as nuclear power, chemical processing, aerospace and marine engineering due to their superior performance in severe environments.

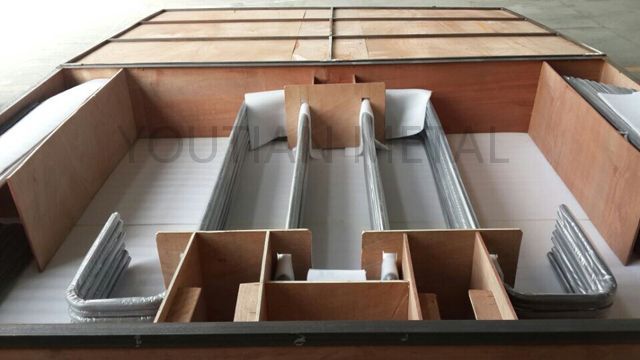

Ⅴ.Packaging
Plywood cases or other packing suitable for truck, overseas and air transportation.
①The first layer: Packing with plastic bags.
②The second layer: Anti-collision material to prevent cargo damage.
③The third layer: Plywood case, drum or other suitable packing.
④The forth layer: Iron frame, packing tape or waterproof film.
⑤Marks: Destination, cargo description, order no., package number, net weight, country of origin etc.
We have been working closely with our air and sea freight forwarders, FEDEX, UPS and DHL to speed up the delivery. Wherever you are, you can be rest assured that we will deliver the material to your hand at the speed you are satisfied with.
Ⅵ.Related Products
| Zr coil pipe | Zr fitting/flange | Zr sheet/plate | Zr wire |
| Zr crystal bar | Hf wire | Hf sputtering target | Hf crystal bar |
Ⅶ.FAQ
1.Manufacturer or trading company? Where is the company located?
We are a manufacturer, located at No.116, Qingyuan North Road, Guli Industrial Area, Guli Street, Jiangning District, Nanjing, China. Welcome to visit us!
2.How long have you been involved in this industry?
We have been engaged in this industry for more than 20 years.
3.Will you offer samples?
Yes, we can offer samples in most occasions.
4.What is the lead time for an order?
It depends on order size, normally 5-40 days.
5.What documents of the product can you provide?
We can provide commerical invoice, packing list, bill of lading, COA and certificate of origin, etc. If you have any special requirements, please let us know.
For more details, please review FAQ
