Titanium Tube and Pipe丨Seamless&Welded, GR1/ 2/ 4/ 7/ 12, ASTM B861& B338, Outer diameter 0.315’’ to 5.99’’

Product Name

Titanium Tube

Titanium Pipe

Grade

GR1 , GR2 , GR4 , GR7 , GR12, etc.

Standards

ASTM B861/ B338

ASME SB-861/338

Size

See detail in descriptions ↓↓↓

Purity

≥99.6%(according to standards)

Color

Silver gray

Density

4.5g/m³


Titanium tubes and pipes are our main products. They are available in varying wall thicknesses and can be ordered to different lengths and specifications.

Need to know more? We're here to help.
Desciption

Ⅰ. What is Titanium?

Titanium is a silver gray metal with atomic number 22. Titanium is often alloyed with other metals, such as Aluminum, Molybdenum, and Vanadium. The addition of these metals helps to obtain desirable properties such as improved strength, corrosion resistance, and reduced weight.

It’s suitable for applications and environments where the properties of stainless steel are not sufficient.

Ⅱ. Product Specification
Our tube rolling factory specializes in Titanium and Zirconium tubes and pipes. Our capabilities can be used to customize your order-including stamping,welding and bending. We have been selling Titainium tubes and pipes to Asia, North America and Europe. Our superior quality,quick delivery and good price will make you compete easier in your market.

  • Grades:

GR1, GR2, GR4, GR7, GR12, etc.

  • Sizes:
Seamless Outer diameter Wall thickness Length
0.315" to 5.99”
(8mm to 152 mm)
0.02" to 0.59”
(0.5mm to 15mm)
up to 354”
(up to 9000mm)
Welded min 0.39”
(min 10mm)
/ /

  • Standards:
ASTM B861-19 ASME SB861-2017
ASTM B338-17(2021) ASME SB338-2017

    Ⅲ. Quality & Assurance

    • ISO certified company

    We are ISO9001, ISO14001, and OHSAS18001 certified company.

    • Real Factory

    We are located in Guli Industrial Area, Guli Street, Jiangning District, Nanjing, China. Welcome to visit us any time!

    • Professional Personnel

    ①Full-time laboratory staff: 7 people.

    ②Researchers: 3 masters and 4 bachelors.

    ③Technical staff: 4 bachelors.

    • Independent Research and Development

    We have 84 domestically authorized patents, including 20 invention patents, 61 utility model patents, 3 design patents, 3 Paris Convention (Britain, France, Germany), and 1 PCT (United States).

    • Comprehensive Quality Inspection

    We implement strict quality control in the manufacturing process, at every step from raw material (sponge, crystal bars, or ingots) to final products.

    Tests are done according to customers' quality requirements:

    Tension test Ultrasonic test Eddy current test Hydrostatic test Pneumatic test
    Flare test Reverse flattening test Chemistry test etc.


    Ⅳ.Application

    Zirconium material and products are widely used in industries such as nuclear power, chemical processing, aerospace and marine engineering due to their superior performance in severe environments.

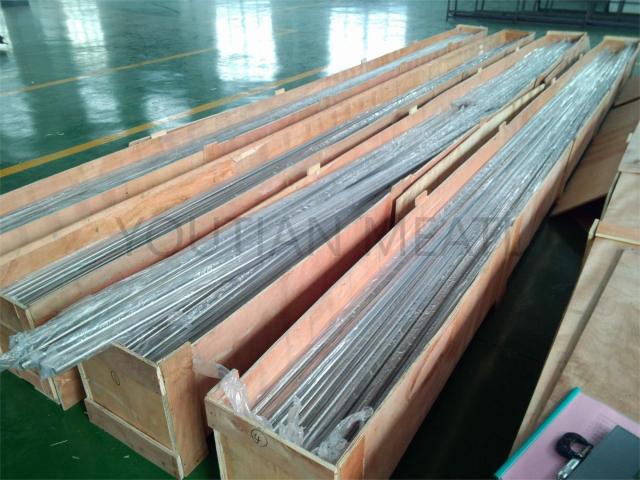

    Ⅴ.Packaging

    Plywood cases or other packing suitable for truck, overseas and air transportation.

    • Details

    ①The first layer: Packing with plastic bags.

    ②The second layer: Anti-collision material to prevent cargo damage.

    ③The third layer: Plywood case, drum or other suitable packing.

    ④The forth layer: Iron frame, packing tape or waterproof film.

    ⑤Marks: Destination, cargo description, order no., package number, net weight, country of origin etc.

    We have been working closely with our air and sea freight forwarders, FEDEX, UPS and DHL to speed up the delivery. Wherever you are, you can be rest assured that we will deliver the material to your hand at the speed you are satisfied with.


    Ⅵ.Related Products


    Ⅶ.FAQ

    1.Manufacturer or trading company? Where is the company located?

    We are a manufacturer, located at No.116, Qingyuan North Road, Guli Industrial Area, Guli Street, Jiangning District, Nanjing, China. Welcome to visit us!


    2.How long have you been involved in this industry?

    We have been engaged in this industry for more than 20 years.

    3.Will you offer samples?

    Yes, we can offer samples in most occasions.

    4.What is the lead time for an order?

    It depends on order size, normally 5-40 days.

    5.What documents of the product can you provide?

    We can provide commerical invoice, packing list, bill of lading, COA and certificate of origin, etc. If you have any special requirements, please let us know.

    For more details, please review FAQ
